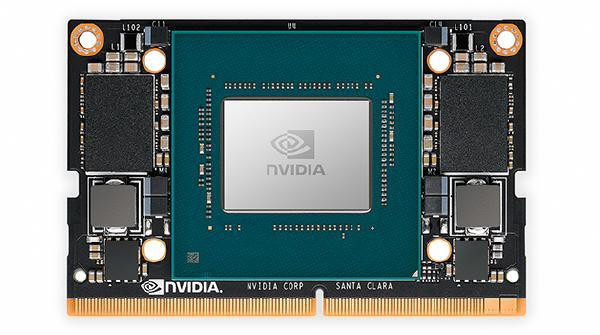

NVIDIA Jetson Xavier NX 16GB Module

NVIDIA Jetson Xavier NX 16GB Module

AI Performance: 21 TOPS
GPU: 384-core NVIDIA Volta GPU with 48 Tensor Cores
CPU: 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3
Memory: 16 GB 128-bit LPDDR4x 59.7GB/s
Storage: 16 GB eMMC 5.1
Power: 10W | 15W | 20W
PCIe: 1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s
CSI Camera: Up to 6 cameras (24 via virtual channels) 14 lanes (3x4 or 6x2 or 3x4 + 1x2 or 5x2 + 1x4) MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps)
Video Encode: 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265) 2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264)
Video Decode: 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264)
Display: 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0
DL Accelerator: 2x NVDLA
Vision Accelerator: 2x PVA
Networking: 10/100/1000 BASE-T Ethernet
