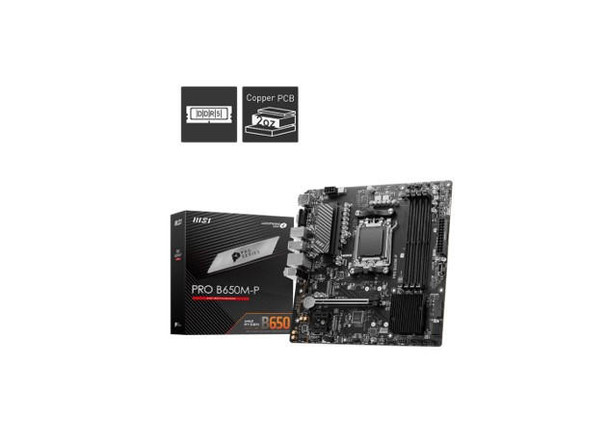

MSI PRO B650M-P AMD AM5 mATX Motherboard, 4x DDR5 ~192GB, 1x PCI-E x16, 2x PCI-E x1, 2x M.2, 4x SATA, 6x USB 3.2, 4x USB 2.0, 1x USB Type C

MSI PRO B650M-P AMD AM5 mATX Motherboard, 4x DDR5 ~192GB, 1x PCI-E x16, 2x PCI-E x1, 2x M.2, 4x SATA, 6x USB 3.2, 4x FEATURES: Supports AMD Ryzen 7000 Series Desktop Processors Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC) Core Boost : With premium layout and digital power design to support more cores and provide better performance Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility High Quality PCB: 6-layer PCB made by 2oz thickened copper SPECIFICATIONS: CHIPSET AMD B650 CPU SUPPORT Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5 MEMORY 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz ONBOARD GRAPHICS 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Supports DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 1920x1200 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. EXPANSION SLOT 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) STORAGE 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G USB 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) PCB DIMENSION (W × L) mATX 243.84mmx243.84mm
