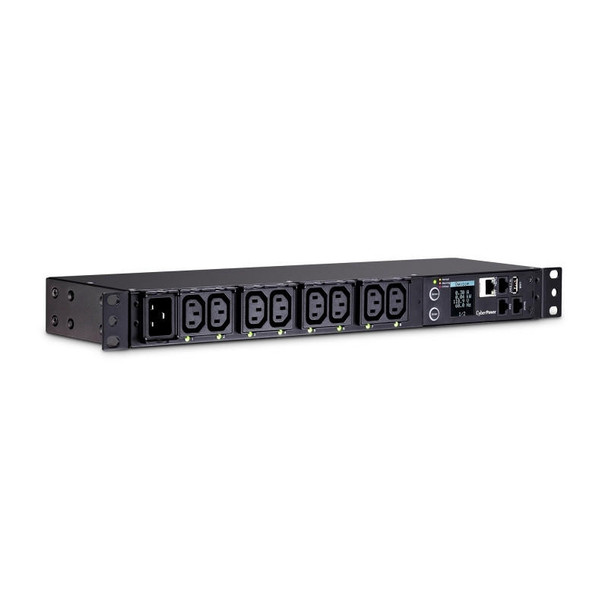

CYBERPOWER PDU81004 Switched Managed Bypass Power Distribution Unit - 16 Amp

SKU:
D-CPPDU81005
UPC:
4712856278446
Weight:
3.90 KGS
Shipping:
Calculated at Checkout
  •  CYBERPOWER PDU81004 Switched Managed Bypass Power Distribution Unit - 16 Amp
  •  CYBERPOWER PDU81004 Switched Managed Bypass Power Distribution Unit - 16 Amp
  •  CYBERPOWER PDU81004 Switched Managed Bypass Power Distribution Unit - 16 Amp
RRP $1,188.99
$914.99
— You save $274.00
Payment options available:
Mastercard
VISA
American Express-AMEX
PayPal
Bank Deposit
Klarna Pay
After Pay
Zip Pay
Share with:
Returns: Click here to view our easy returns policy
We ship Australia-wide

Description

CP Switched MPO ePDU 16Amp

Specifications:

  • Phase: Single Phase
  • Nominal Input Voltage ( Vac ): 100 - 240
  • Input Frequency ( Hz ): 50 / 60
  • Maximum Input Current ( A ): 16
  • Input Connector Type: IEC C20 x 1
  • Power Cord Length: 3.05
  • Output Voltage ( V ): Depends on Input
  • Idle Power Consumption ( W ): < 5
  • Outlets - # of Bank(s): 1
  • Outlet(s) - Total: 8
  • Outlet(s) - Front: 8
  • Outlet Type: IEC C13 x 8
  • Remote Individual Outlet Control: Yes
  • LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Network Information | Serial Number | Environment Status | Hardware Version | Firmware Version
  • Hot-swappable LCD Module: Yes
  • Auto LCD Orientation: Yes
  • LCD Setting & Control: Outlet Control | LCD Settings | Reset / Reboot
  • LED Indicators: PDU Status | Tx/Rx | Link | Outlet
  • Outlet Metering Capability: ± 1%
  • A-type USB Port: Yes
  • Connectivity Port: RJ45 | RJ45 (for Serial) | RJ45 (for ENVIROSENSOR/ Daisy Chain (In)) | RJ45 (for Daisy Chain (Out))
  • Environmental Sensor Supported: Yes
  • User-upgradeable Firmware: Yes
  • Power Management Software: PowerPanel Business (Recommended for small-medium scale management) | PowerPanel Enterprise (Recommended for large scale management)
  • Supported Protocols: IPv4/v6 | SNMPv1/v3 | HTTP/HTTPs | TCP/IP | UDP | DHCP | NTP | DNS | SMTP | SSH | SSL | TLS | Telnet | FTP | and Syslog
  • Authentication: RADIUS | LDAP | LDAPS | Windows AD
  • Installed Rack Height (U): 1
  • Form Factor: 1U Vertical Rackmount | 1U Horizontal Rackmount
  • Enclosure Construction: Steel
  • Cord Retention Tray: Yes
  • IEC Receptacle Locking: Yes
  • External Site Ground Pin: Yes
  • Adjustable Mounting Brackets: 2 Set (L-short | L-long)
  • Dimensions: 433 x 44 x 112mm
  • Weight: 2.1kg
  • Certifications: CE | FCC Class A | UL60950 | UL62368 | EN 55032 Class A | RoHS
  • : 2 Years

Features:

  • Real-time Local/Remote Monitoring and Switching of Individual Outlet
  • Work under High Temperature
  • ±1% Measurement Accuracy
  • Digital Real-time Load Display
  • Hot-swappable LCD Design
  • LED Status Indicator
  • Supports ENVIROSENSOR
  • PowerPanel Management Software
  • Cord Retention Tray
  • Controllable Receptacles with Power Sequencing
  • Ultra Low Power Consumption
  • Industrial-grade Metal Housing
  • User Configurable Color LCD
  • Rotatable LCD for Proper Display Orientation
  • Firmware Upgrade via USB
  • User-upgradeable Firmware
  • Adjustable Mounting Brackets
  • IEC Receptacle Locking

What's in the box?

  • 1 x PDU81005
  • 1 x User Manual
  • 1 x Cord Retention Tray
  • 1 x Mounting Brackets
  • 1 x Cable Ties
  • 1 x Screw Kit
  • 1 x Power Cord
  • 1 x Serial Cable
