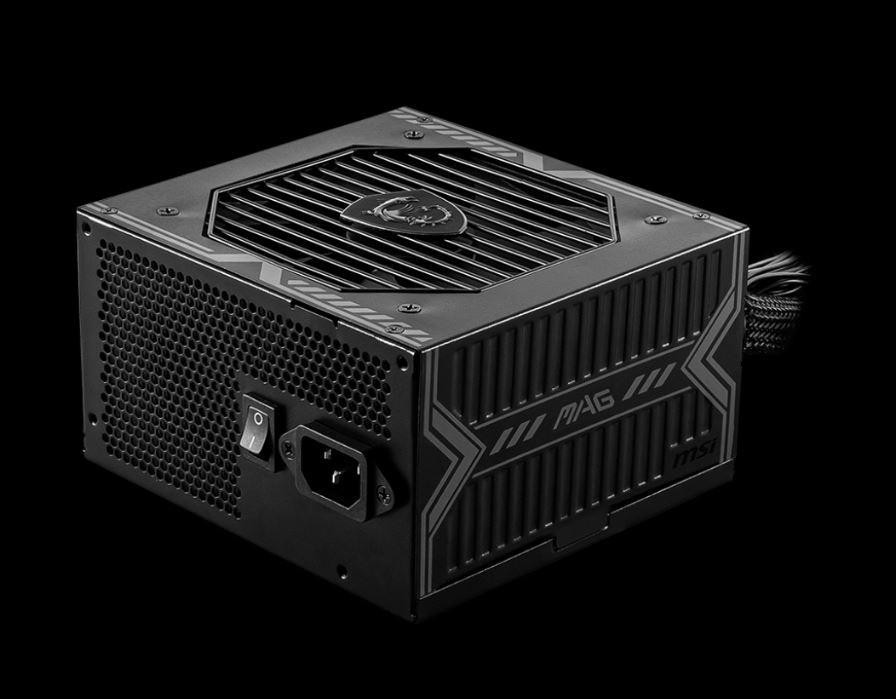

MSI Magenta A750BN PCIE5 750W ATX Power Supply Unit

MSI Magenta A750BN PCIE5 750W ATX Power Supply Unit FEATURES: MSI MPG A750GF The MPG gaming power supply can support the NVIDIA GeForce RTX 30/20 Series and AMD GPUs. Prepared for the highest of requirements, the MPG power supply"s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards. Supports the NVIDIA GeForce RTX 30 Series GPUs Full modular cable design Flat cable equipment 10-year 80 PLUS Bronze (up to 85%) 100% all Japanese 105oC capacitor Active PFC design Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP LLC Half Bridge Topology with DC-DC module design SPECIFICATIONS: EFFICIENCY RATING 80 PLUS Bronze (up to 85%) MODULAR Yes (full modular) FAN SIZE 120 mm FAN BEARING Fluid Dynamic Bearing DIMENSIONS (DXWXH) 140 x 150 x 86 mm PFC TYPE Active PFC INPUT VOLTAGE RANGE 100~240 VAC POWER WATT 750W POWER EXCURSION 1500W (*up to 200% of the PSU's rated power for 100μs) INPUT FREQUENCY RANGE 47-63Hz PROTECTION OCP / OVP / OPP / OTP / SCP / UVP ATX (24 PIN) 1 EPS (4+4 PIN) 2 PCI-E 5.0 (16 PIN) 1 (450W) PCI-E (6+2 PIN) 3 SATA (15 PIN) 8 MOLEX (4 PIN) 4 FDD (4 PIN) 1
