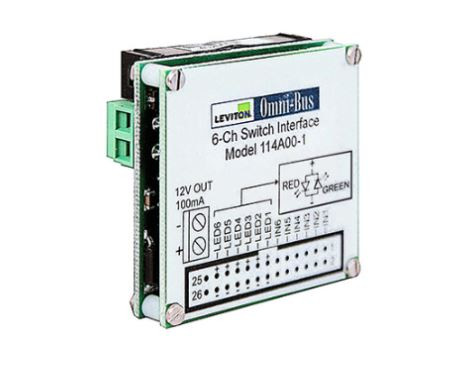

LEVITON SECURITY & AUTOMATION OMNI-BUS 6-CHANNEL UNIVERSAL SWITCH INTERFACE MODULE

Omni-Bus is a distributed control system for lights shades fans shutters pumps and more. Utilizing the worldwide DIN rail standard for mounting Omni-Bus controls CFL LED electronic low voltage Halogen and incandescent lighting. Output devices are rated for 110/220/240V 50-60Hz markets unless otherwise noted. All wall stations are 24VDC and below. Modular Omni-Bus components can be located where needed to save wiring and installation costs. Elegant multi-button programmable wall stations eliminate the expense of in-wall high voltage wiring to multi-way switches.

• Used to accommodate any shape and style momentary contact switch
• Connect up to six momentary contact switches to the bus and operate them as if it were an Omni-Bus Wall Station with all of the same functionality
• Also supports up to six two-lead bi-color or single color LED indicators one for each switch
• Features control for on/off dimming brightening and scene control configurable operating modes and can be linked to a Leviton Omni or Lumina controller
• Bus side supply voltage 15-24VDC via bus network cable
• Bus side supply current 40mA maximum without 12VDC
• output consumption
• Auxiliary Output voltage 12VDC 100mA max
• Ambient Temperature 0 – 40 ºC 32 – 104 ºFIngress Protection IP20Dimensions 46mm x 50mm x 21mmLED drive current 5mA maximum per LEDSwitch input maximum contact resistance 1kohm
• Maximum recommended switch input cable length
• 10m 33 feet
• All modules are CE FCC UL ETL SASO and C-Tick approved

• Leviton Part Number OB141
