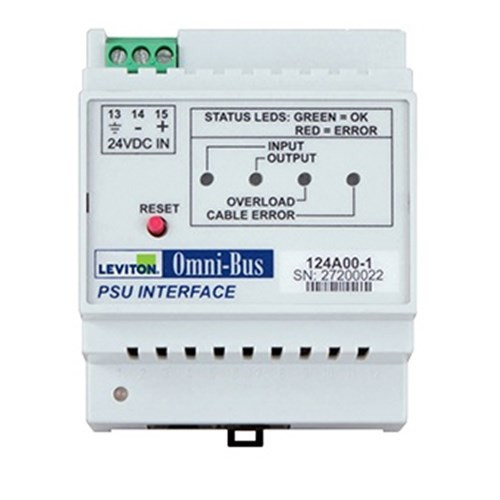

LEVITON SECURITY & AUTOMATION LEVITON PSU INTERFACE MODULE FOR OMNI-BUS BUS LIGHTING SYSTEM DIN RAIL 2AMP

Omni-Bus is a distributed control system for lights shades fans shutters pumps and more. Utilizing the worldwide DIN rail standard for mounting Omni-Bus controls CFL LED electronic low voltage Halogen and incandescent lighting. Output devices are rated for 110/220/240V 50-60Hz markets unless otherwise noted. All wall stations are 24VDC and below. Modular Omni-Bus components can be located where needed to save wiring and installation costs. Elegant multi-button programmable wall stations eliminate the expense of in-wall high voltage wiring to multi-way switches.

• The Power Supply Interface is a required component used to distribute power to and Omni-Bus network from required 123A00-1 power supply
• Detects low voltage overloading and cabling errors on the Omni-Bus network
• Input Voltage 24VDC
• Output voltage to Bus network 24VDC
• Maximum load 2A
• Ambient Temperature 0 – 40 ºC 32 – 104 ºF
• Ingress Protection IP20
• Required power supply Leviton 123A00-1 Omni-Bus Bus Power Supply 2.5A Din Rail
• More than one power supply and power supply interface combination can be used if the total network current consumption exceeds 2A
• All modules are CE FCC UL ETL SASO and C-Tick approved
• Leviton Part Number OB241
